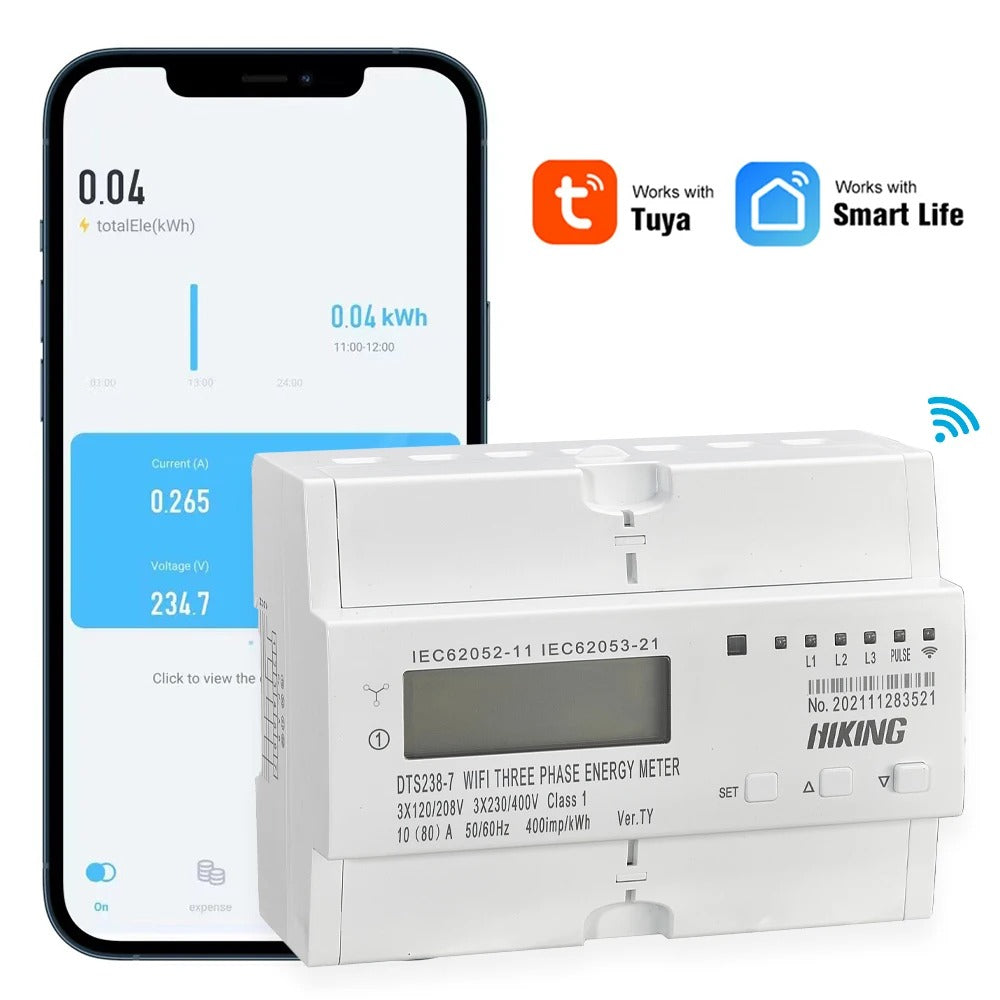

Tuya Three-phase 80A Electricity Meter with LCD display, Smart life application ,Energy Consumption and Remote Switch on/off

Complete specifications
Three-phase single-tariff electricity meter, cooperating with the Tuya cloud application. Enables remote reading of energy consumption and remote switching off/on (contactor 3x230V 80A; maximum peak current 100A). At the same time, it enables the connection of an impulse counter (400 imp/1kWh).

accuracy class 1 IEC62053-21
LCD display
remote readings
remote electricity billing energy
history of measured values
remote switching
pulse output 400 imp/kWh
DIN installation (width 7 modules)
dimensions 126 x 98 x 78mm
RS485
the design of the contact cover enables sealing

Diagram
Warning - leave the installation of the electricity meter to a specialist with the appropriate authorization

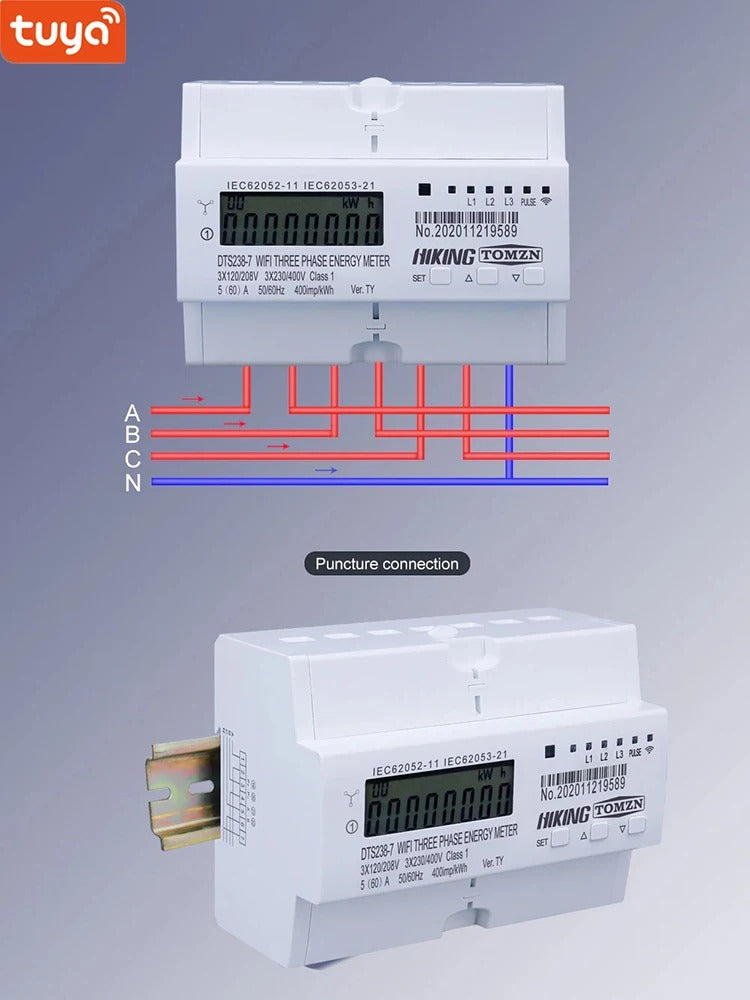

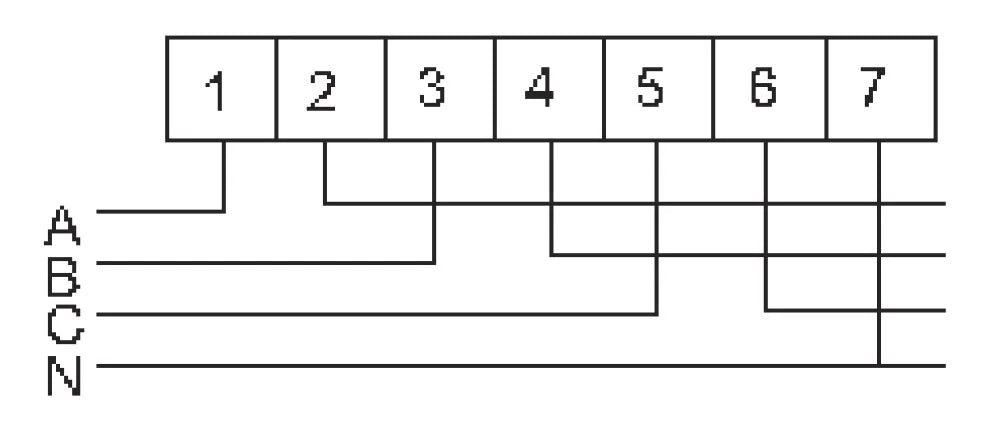

Terminal #1 - Phase Wire Input A (L1 in)
Terminal No. 2 - Phase wire output A (L1 out)

Terminal #3 - Phase Wire Input B (L2 in)
Terminal No. 4 - Phase wire output B (L2 out)

Terminal No. 5 - Phase Wire Input C (L3 in)
Terminal No. 6 - Phase wire output C (L3 out)

Terminal No. 7 - Input and output of the neutral (neutral) wire (N)

Terminals No. 19,20 - impulse output 400imp/1kWh
Terminals No. 21, 22 - MBUS connector RS485

Pairing with Tuya app
After the first connection, the electricity meter is automatically in pairing mode (the blue "WiFi" LED briefly flashes rapidly). Follow the instructions in the Tuya app to continue pairing.

To manually start pairing mode

use the arrows to switch to the screen that shows "C 400"
hold the right arrow (down) until the blue WiFi LED flashes, indicating pairing mode
continue pairing as instructed in the Tuya app


Frequently asked question
Customers call us saying that they set the electricity meter to off via the application, thereby turning off the electricity in the entire building and thus also the power supply to the WiFi router - now they are in a state where the electricity meter cannot be turned on via the application, because WiFi is not available and the electricity meter appears in the application as offline.

Do not connect the WiFi router behind the electricity meter, you will not be able to turn it on again via the application (if the electricity meter is turned off). Make sure that the circuit on which you have the necessary HW to connect the electricity meter to the Internet is connected regardless of the status of the electricity meter
Manual switching on/off of the electricity meter using the buttons on the electricity meter is done by simultaneously pressing both arrows

Specifications
Direct two-way* measurement 3x 80A (from 0.04A to max. 100A)
Reference voltage: 3x230/400V+N
Maximum current 3 x 80 A (80A per phase)
Reference current: 10A (the current at which the measurement is most accurate)
Maximum peak current: 100 A per phase
Own consumption: <1W/10VA per phase
Accuracy class 1 - EN61036 IEC62053-21

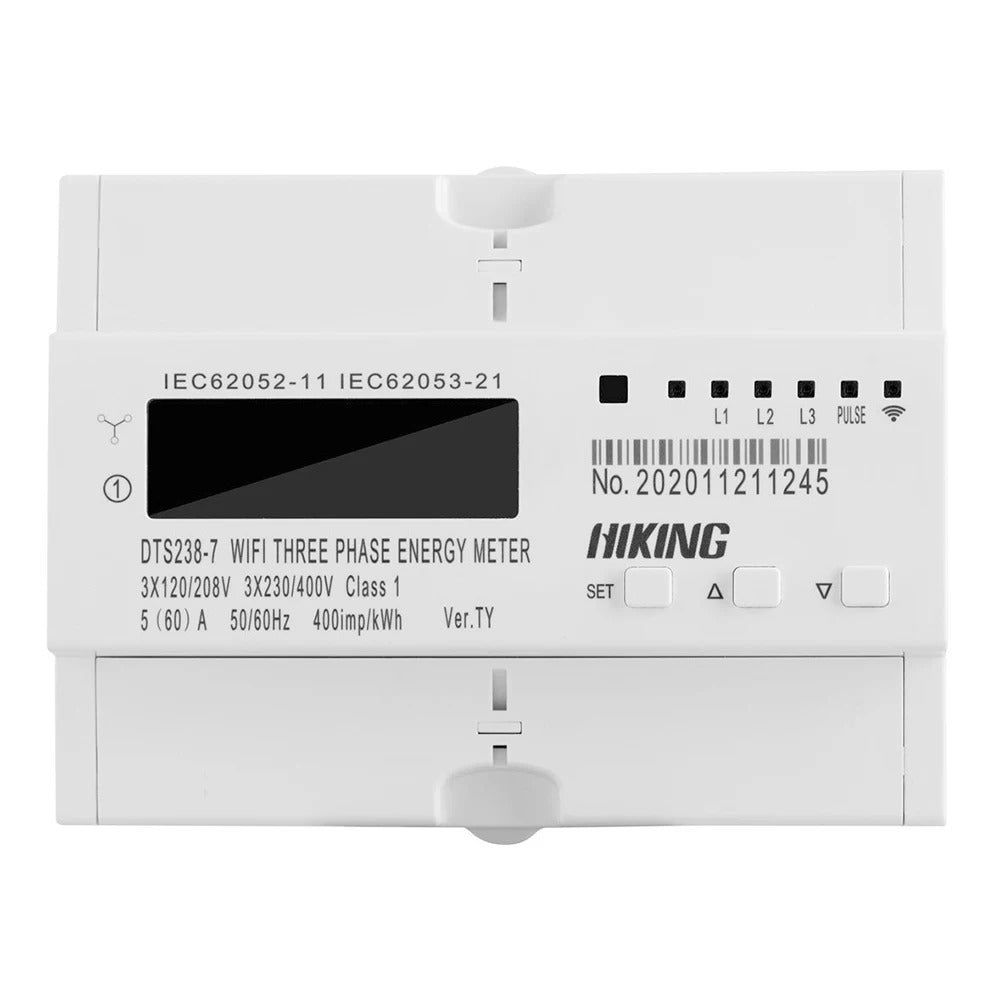

LCD display with backlight for displaying measured values

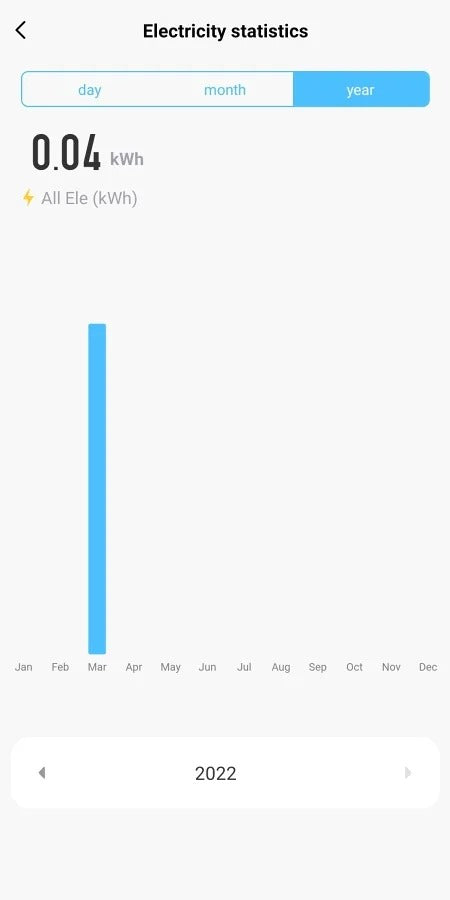

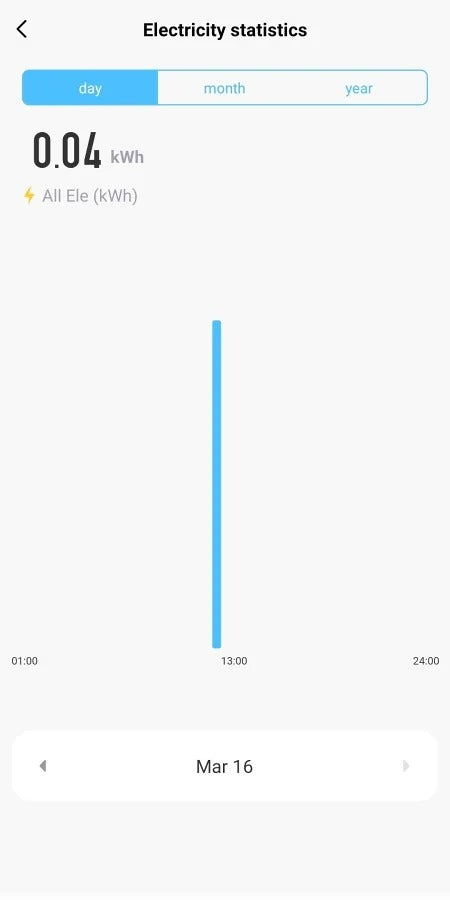

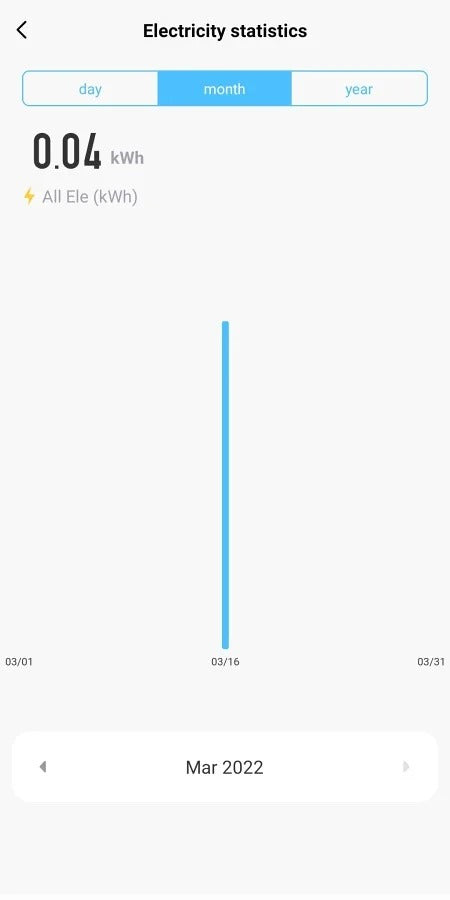

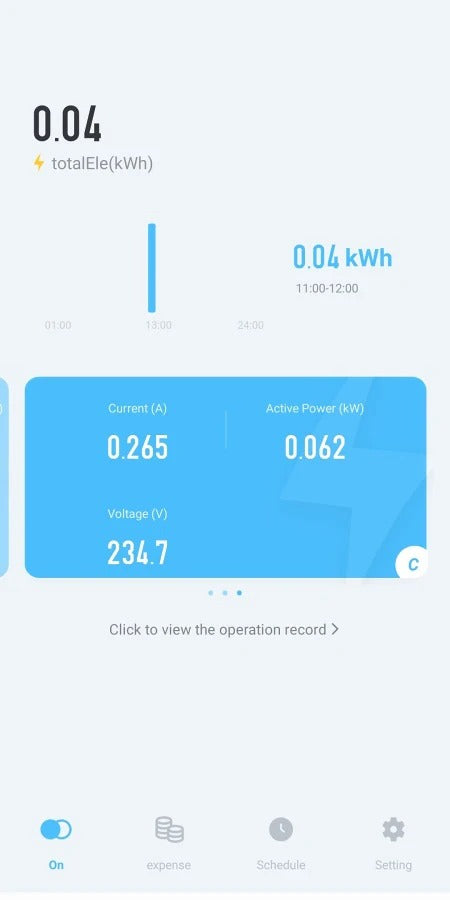

Remote readings using the app with memory and display of sampling history for days/months/years
Remote switch-off and switch-on / remote-controlled contactor
Programmable switching timer
Prepayment settings for the amount of energy
Tuya application with the possibility of controlling other appliances based on the data measured by this electricity meter
WiFi connection 802.11b/g/n
RS485 MBUS port - selectable speed 1200 - 9600 bps, address 1 - 247, no parity, stop bit 1, data bit 8
SO impulse output open collector, 400imp/1kWh
Status signaling by LED
Overvoltage protection 4000V/25mA for 60s
Mounting on a TS 35mm DIN rail, possibility of sealing the terminal block
Width 126mm (7 modules)
Protection IP20
Operating temperature -25'C - 70'C

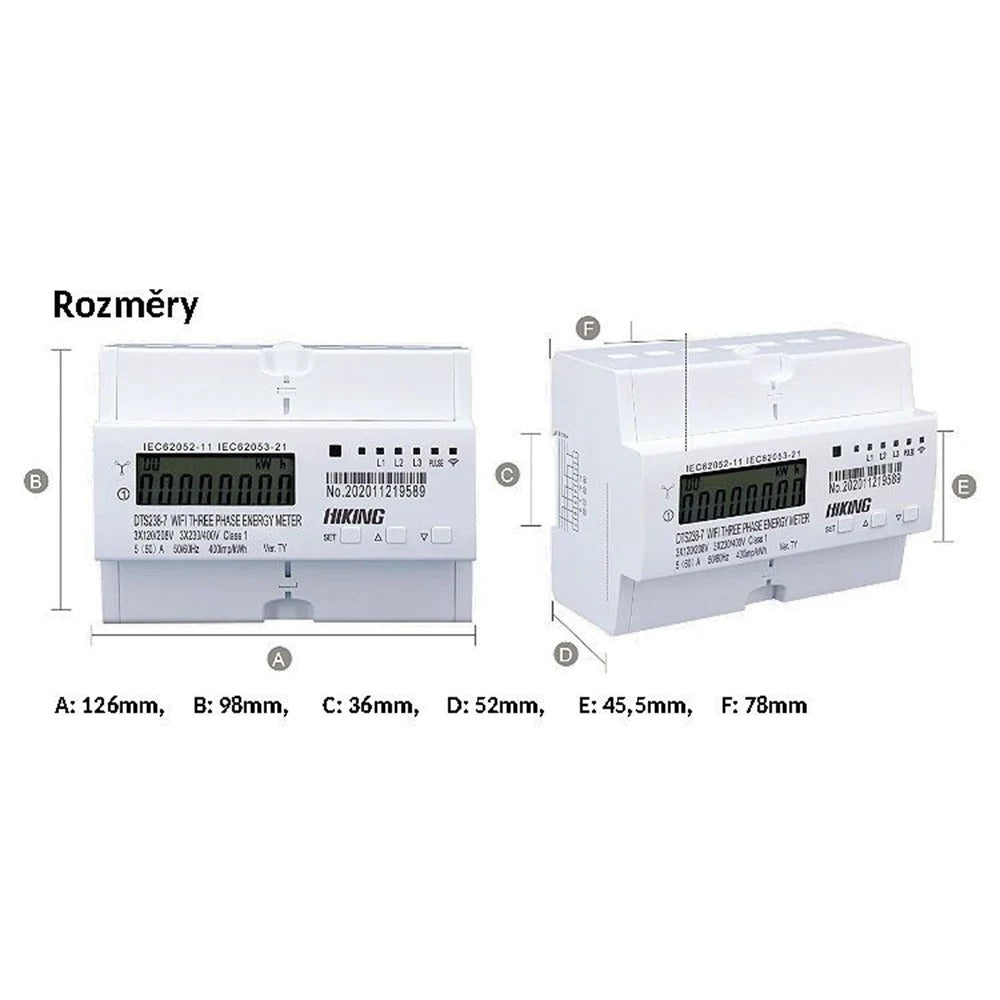

Dimensions 126 x 98 x 78mm
All meter functions meet the technical requirements of class 1 three-phase watt-hour meter in IEC62053-21 and WIFI 802.11b/g/n data communication rules
The electricity meter is manufactured in accordance with the international standard IEC62052-11 on General requirements for tests and test conditions for electricity meters IEC62053-21 on static electricity meters for active energy (classes 1 and 2)
