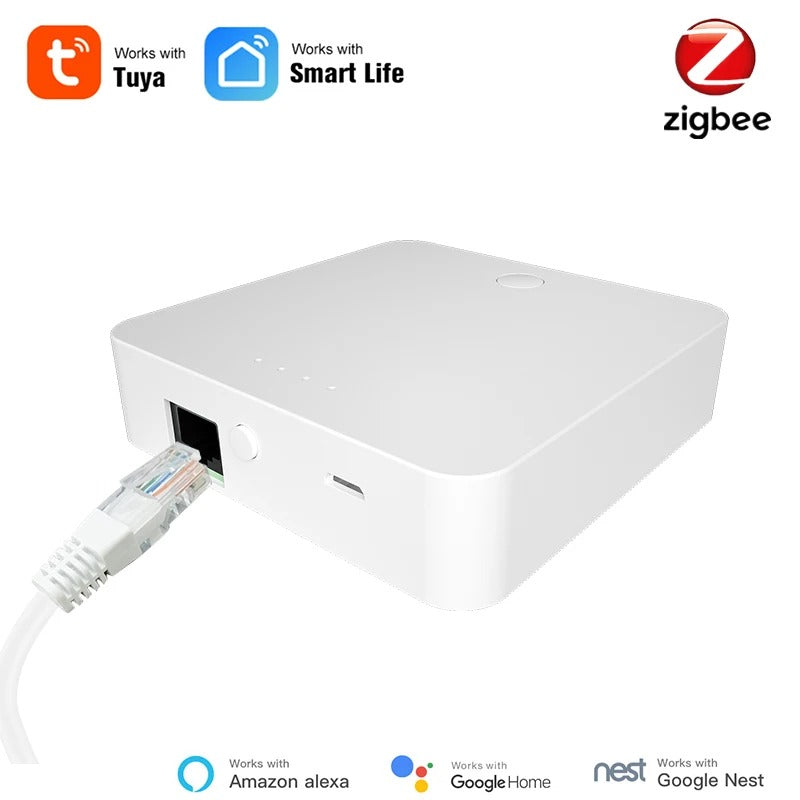

Zigbee LAN gateway is the core device of the Zigbee network. Zigbee devices are added to the network through the gateway to realize communication with other Zigbee devices. The gateway is connected to the router through a network cable to communicate with the cloud and mobile apps. Through the app can view and control Zigbee equipment.
.Product features

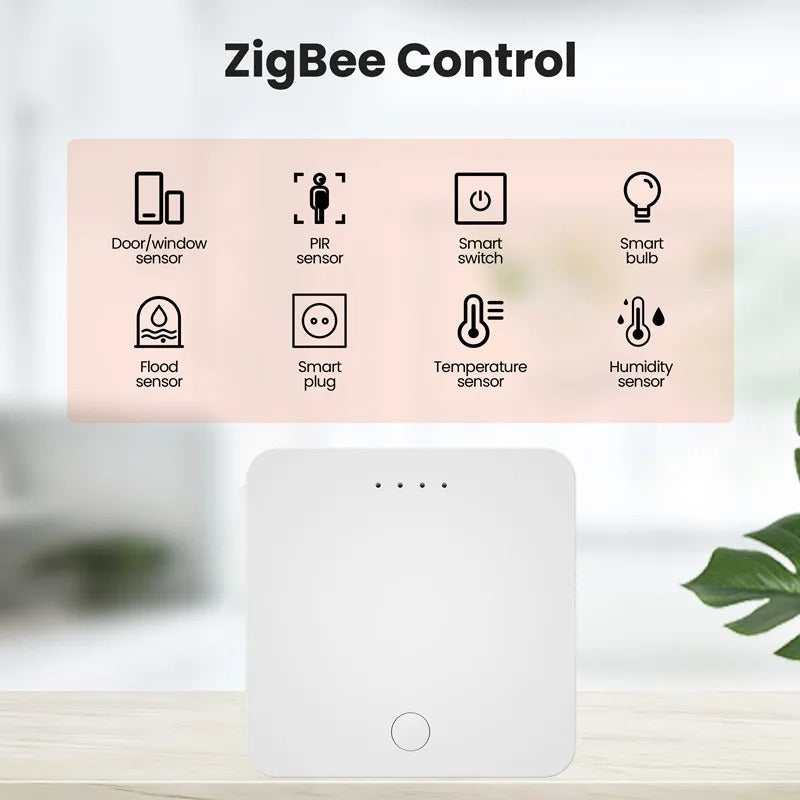

a) Control Zigbee devices: users can control Zigbee's sub-devices through the gateway, and support remote control and group control;

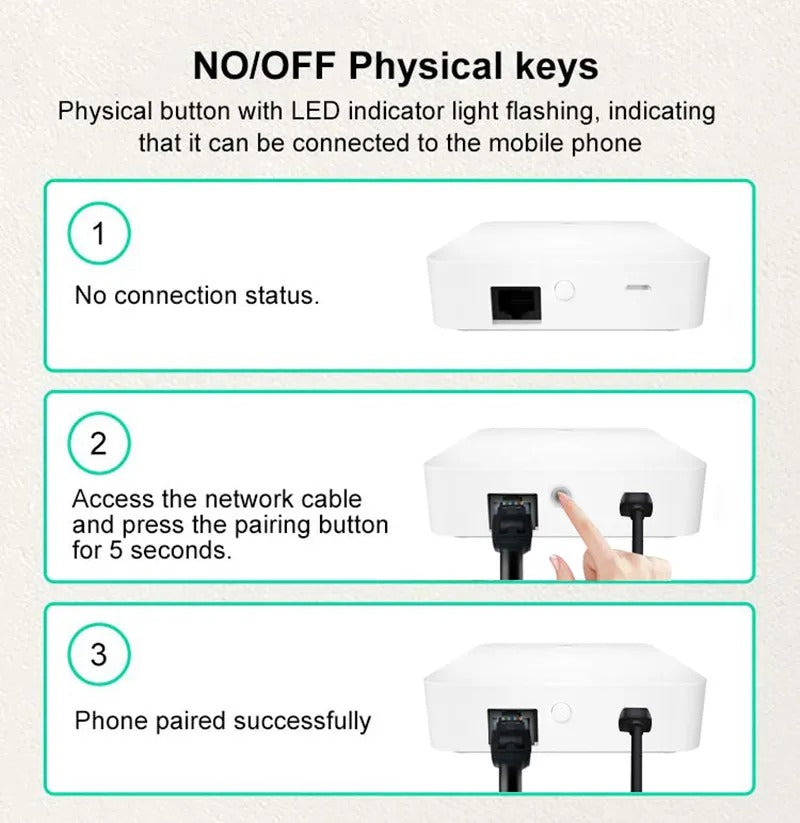

b) One-key networking: support multiple devices to be added at the same time, simplify the tedious steps of network configuration, and make the device networking operation more user-friendly;
c) Cloud scene/automation: Through the scene and automation settings in the APP, the sub-device under the gateway can be used as an execution or trigger condition to link with other smart devices;
d) Local scene/automation: When scene/automation is executed, the local will be given priority. Through this function, the intelligent scene/automation set by the user can still be executed efficiently even when the external network is disconnected;
e) Support project deployment: support project installation and deployment, local deployment and installation of equipment can also be completed in the real estate construction environment, and support intelligent scene configuration, users only need to configure the gateway to use when staying in.
Product specifications

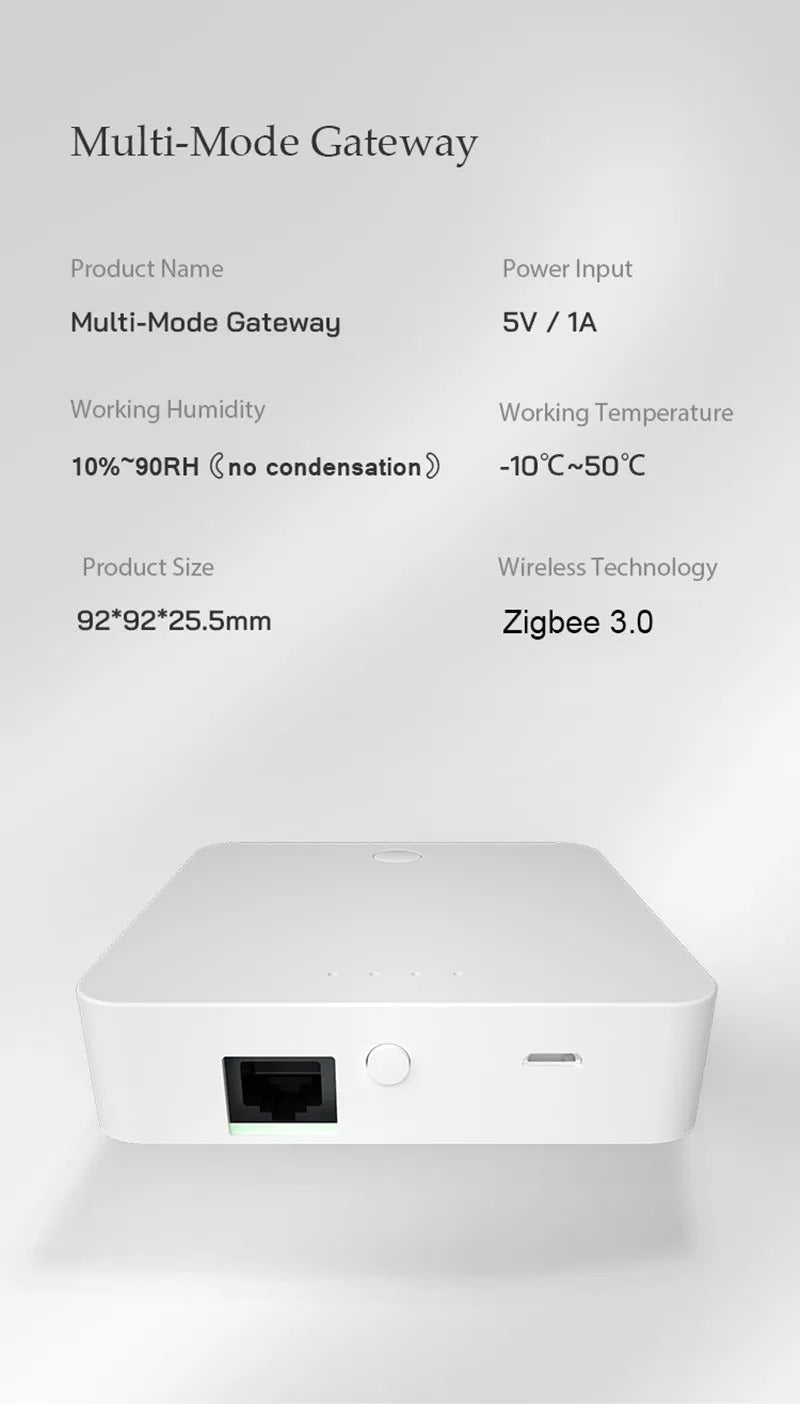

Physical characteristics
Appearance size Length*width*height =92*92*25.5mm
Weight Net Weight 100g
Status indicator 4 LED (Green)
Operation buttons 2 button (reset)
Power supply MicroUSB DC5V
Working current <1A
Adapter 110V～240VAC,5V/1ADC
Working Voltage 1.8V～3.3V
Working temperature -10-55℃
Working humidity 10%-90%RH(Non-condensing)
Storage temperature -20-60℃
Storage humidity 5%-90%RH(Non-condensing)
Hardware interface 1 Micro-USB, 1 LAN Interface
Wireless technology IEEE 802.15.4 2.4~2.485Ghz Zigbee 3.0

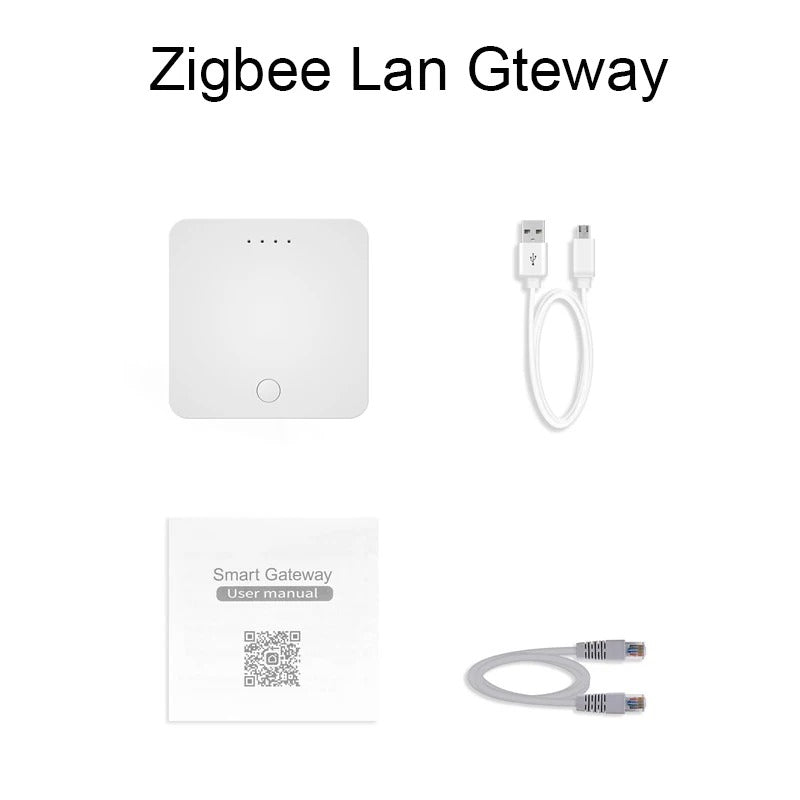

Packing List
Zigbee LAN gateway x1
LAN Cable x1
Data Cable x1
Adapter x1(Optional, not included in standard kit)
User Manual x1
Questions :
Q. Does the product support Wi-Fi connection?
A: The product supports Zigbee connection in the downlink, and only wired connection in the
uplink;
Q. Does the product support 5G frequency band connection?
A: The product only supports 2.4G Wi-Fi (the same local area network) connected to the mobile
phone during network configuration, and does not support 5G;
Q. When ensuring stable control, what is the farthest distance between the sub-device and the
gateway?
A: Indoor 35m, outdoor 200m+, stable control;
Q. How many sub-devices can be connected at most?
A: 128;
