This intelligent electric ball valve is widely used in the Internet of Things and smart home systems. It can be powered by DC5V , DC motor chip drive. Equipped with a multifunctional button,

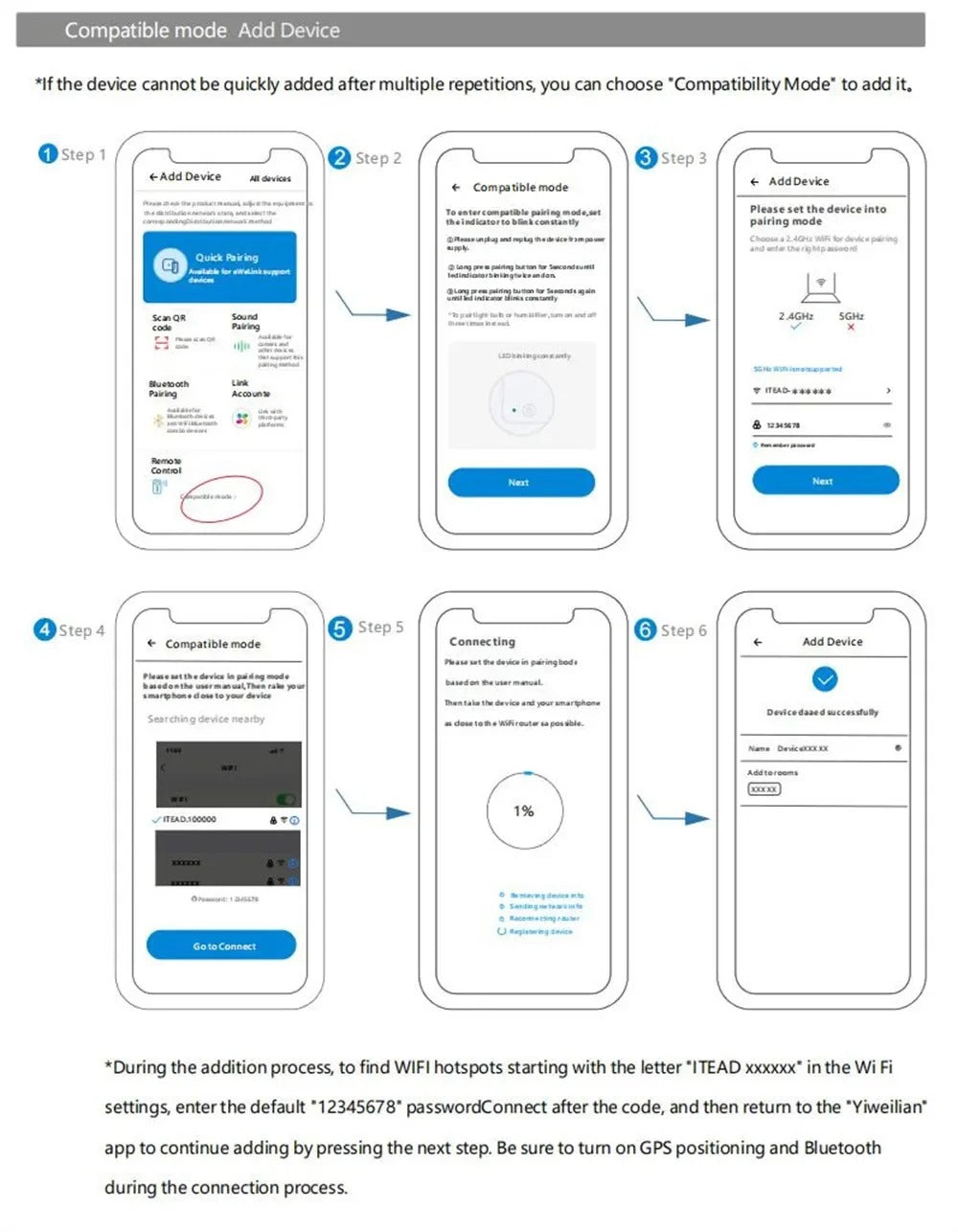

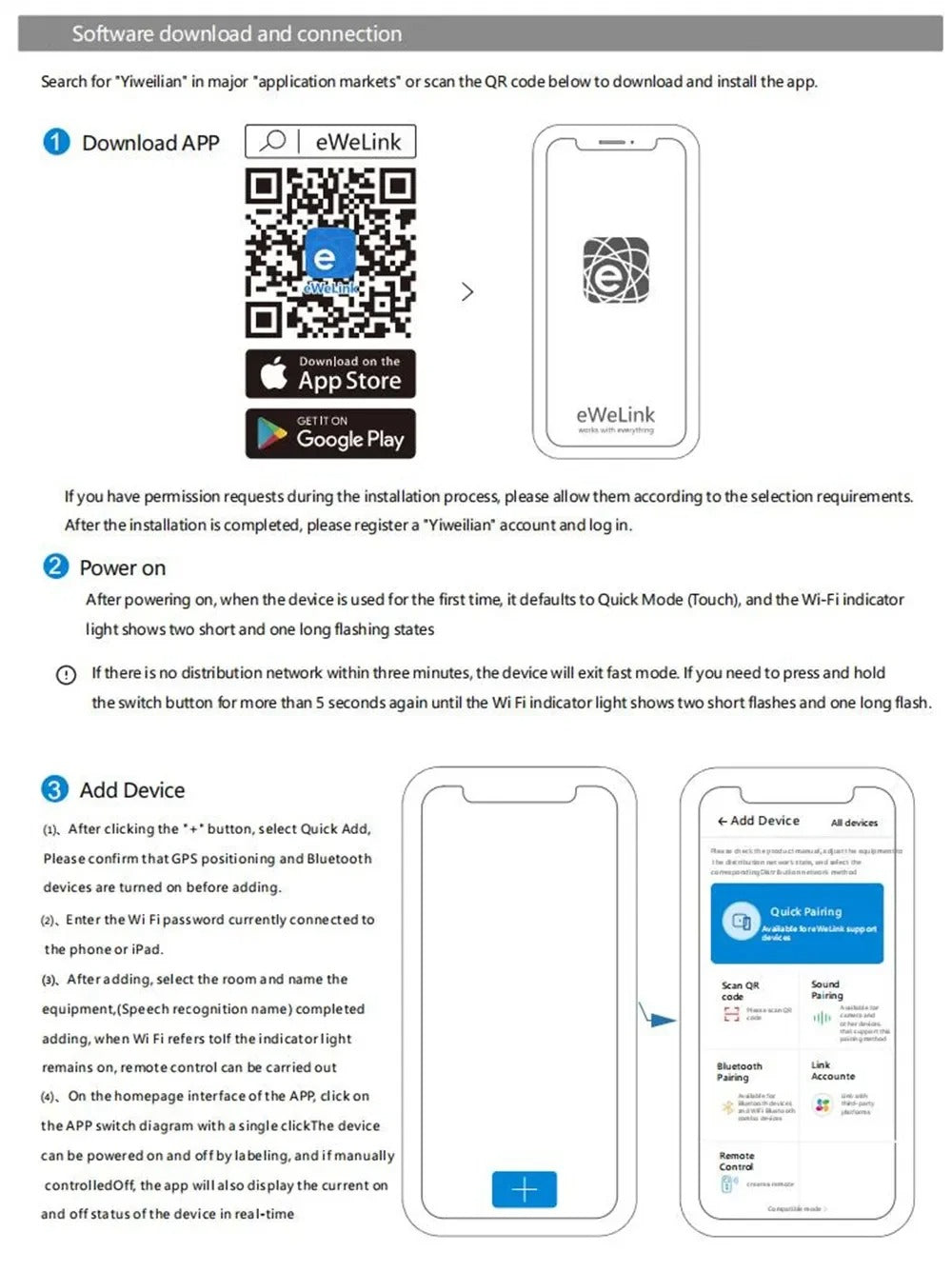

the device can be turned on and off when lightly touched, makingit convenient for on-site operation. Press and hold the "button" for more than 5 seconds to
configure the network or clear the original network information, and restore factory settings.

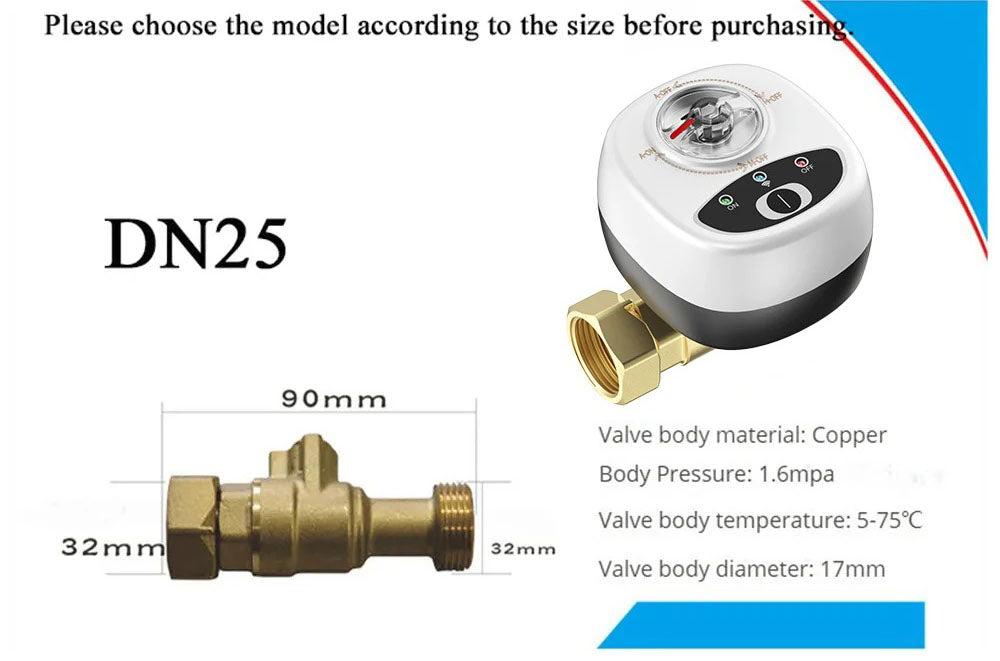

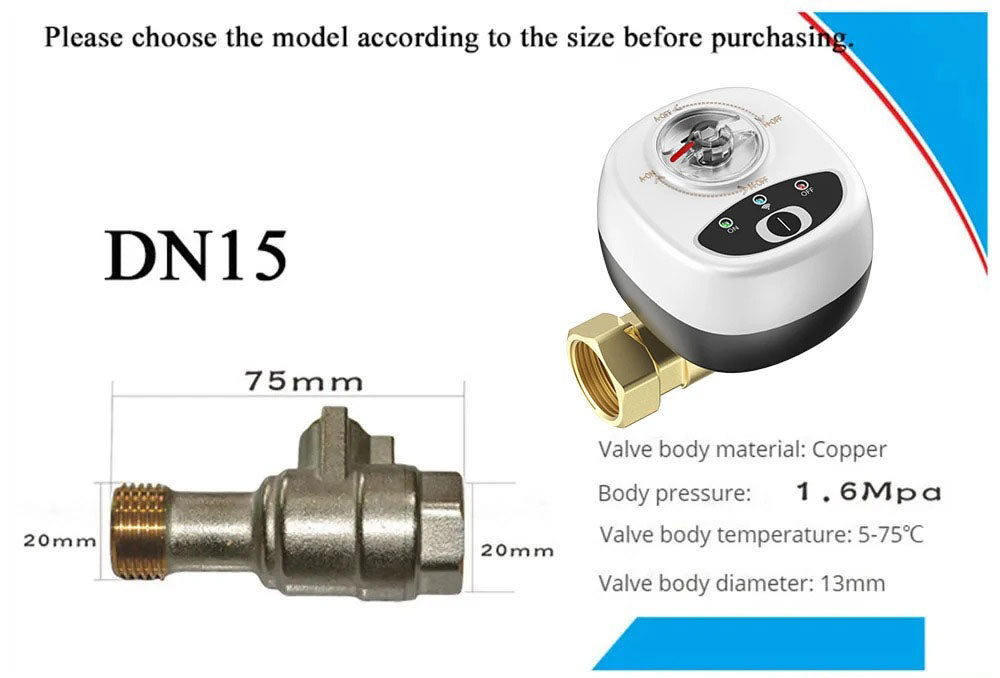

Product technical parameters
Input voltage and current DC5V ≤1A
wireless standards:Wi-Fi 2.4GHz b/g/n
work environment:-20℃-50℃ ≤80% humidity
Shell material:Flame retardantPC or ABS
Opening / Closing Time : 18 Seconds
Alarm linkage function More functional examples can be bundled with third-party products, such as eWeLink's water immersion sensor,
The valve automatically closes after an alarm, and can also be linked to the smart home platform for multi-scene control, such as automatic "home mode"
Open the valve and automatically close the valve in "away mode" to reduce the occurrence of water and gas leakage accidents

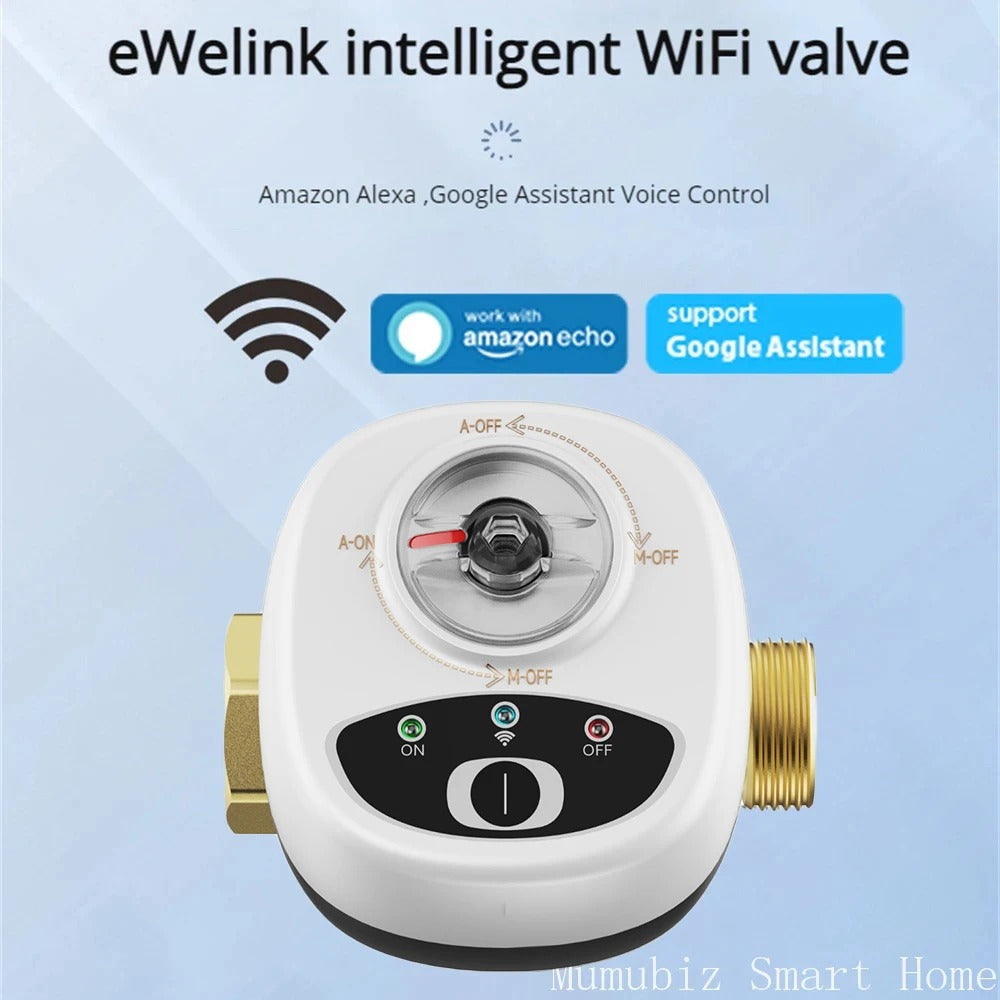

Voice control: "Alexa Echo", "Google Home" and other platforms, more compatible platforms are under further development.

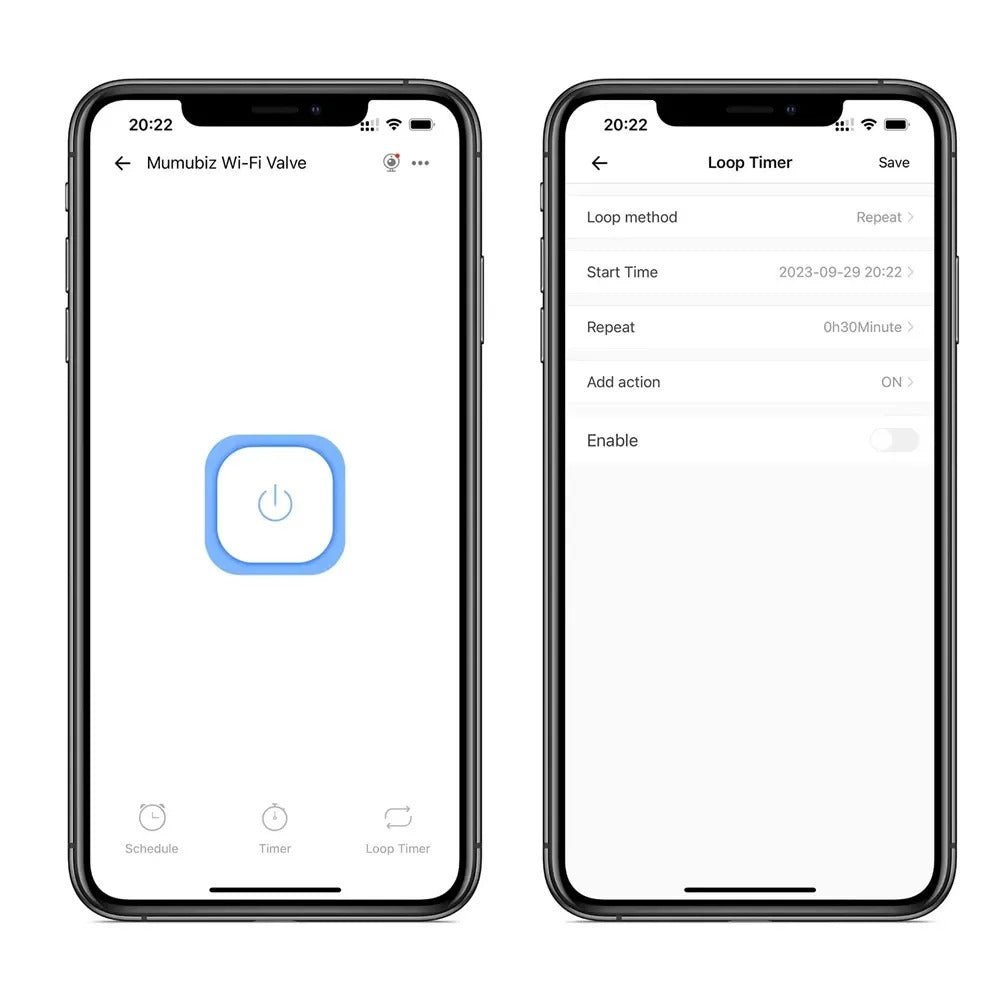

Timing control: Through the APP, you can set three methods: timing, delay, and cycle timing. For example, close the valve at home at 7:30 a.m. during working hours.
The valve will automatically open when returning home at 17:30.

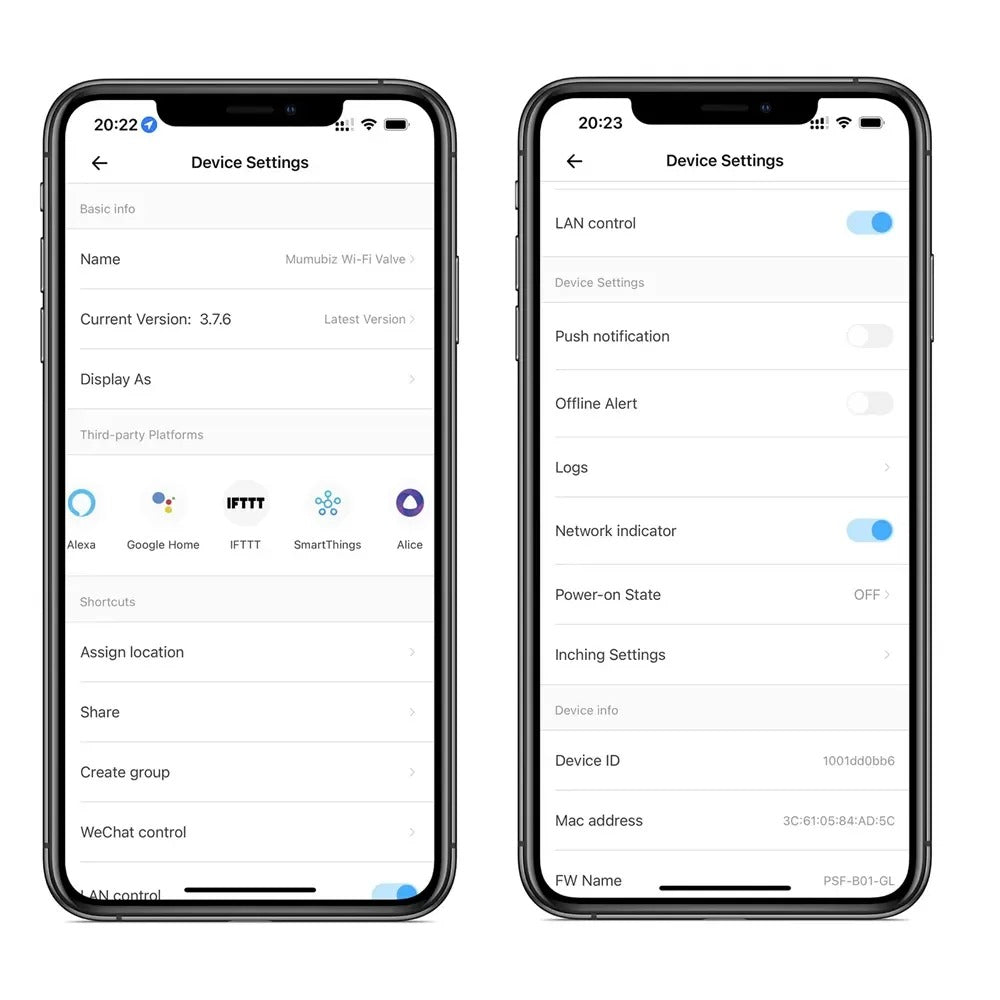

Power-on status: The status of the valve when power is cut off and restored can be set through the APP. For example, when the power is on
After closure, the "water hammer" in the pipeline can be partially eliminated after water flow is restored.
More functions: In addition to wireless control, it can also be combined with more products, such as
Water meter, heat meter, etc.
